Flexible LED Screens

/// LED DIGITAL SCREENS

Transform Your Space with Our Cutting-Edge

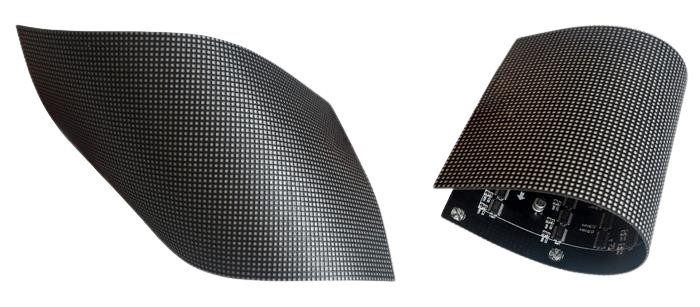

Flexible LED Screens

Revolutionize the way you showcase your content with our Flexible LED Screens—a perfect blend of innovation, versatility, and high-performance technology. Designed to fit virtually any curved or irregular surface, our Flexible LED Screens open up endless possibilities for creative installations, from dynamic retail displays to stunning architectural projects. Our Flexible LED Screens feature high-quality Nationstar lamps for exceptional brightness, clarity, and color accuracy, ensuring your visuals remain vibrant and sharp, whether used indoors or in controlled outdoor environments. These screens can bend, curve, and conform to unique shapes, allowing you to create eye-catching displays that traditional flat screens can’t match. Ideal for a variety of applications, such as:

Retail spaces: Create immersive and engaging in-store experiences with curved, creative displays that capture attention.

Events & Exhibitions: Enhance your event visuals with flexible screens that can wrap around structures or fit into custom-designed stages.

Architectural designs: Integrate flexible LED technology into building facades or interior features for a modern, futuristic look.

Advertising: Deliver bold, impactful messages with flexible LED screens that adapt to your installation’s design.

With customizable pixel pitches and high-resolution options, our Flexible LED Screens are perfect for projects requiring both flexibility and high visual impact. The robust and lightweight construction ensures they are easy to install and maintain, while the durable materials offer long-term performance. Whether you’re looking to enhance a retail space, create an engaging exhibition display, or add a unique architectural feature, our Flexible LED Screens provide the ideal solution for creating memorable, dynamic visual experiences.

  • Application: Cinema Theatre, Branded shops, Airports etc
  • Pixel pitch starting from 2.5mm
  • Bend angle: 180 Degrees.
  • Front Maintenance
  • Flexible silicone / Rubberframe material

Flexible LED Display Parameter Details

Compared to the traditional flat screen displays, it has a bending character. But both are easy installation because of they can be installed by modules. The only difference is, it is flexible and so bending type.
Obviously, this is the first advantage that comes to mind. The technology used for this type of display screen is geared towards providing utmost flexibility. You can bend it, or fold it and it will not break.
Since it is made of oft PCB and rubber material, it is very thin and light in weight
Flexible LED screens are very fragile and vulnerable to breaks or cracks.
These flexible display screens will never break even if you bend or fold them due to their high density. After all, they were designed to do those things specifically. This is the good thing about using this type of LED display. You won’t have any issues when it comes to durability and performance.
even though these display screens are very light, it doesn’t take a lot of hands to install it. they are designed to be easily assembled and attached.
Another common issue with flexible LED screens is the slow frame rate. It’s still not fast enough to cope with devices like a normal LED screen.

Due to the difference of materials being used, it is much more expensive than a normal LED screen.

ITEM UNIT P2.5 P3 P4 P5
LED Type
N/A
SMD1010
SMD1515
SMD2121
SMD2121
Pixel Pitch
mm
2.5
3
4
5
Ingress Protection
Ingress Protection
IP
31, not water-proof, indoor installation only
Viewing Distance
meter
2.5
3
4
5
Module Size
mm
240×120
240×120
256×128
320x160m
Module Pixel
Pixel
96×48
80×40
64×32
64×32
Working Voltage
DC
5V±10%
Module Current
A
≈4A
Module Consumption
W
≈20W
Power Port
N/A
VH4
Data Port
W
HUB75D(IDC16)
Module Maintenance
N/A
Front/back
Brightness
Nits
800-1000
Refresh rate
Hz
1920/3840
Digital Processing
Bit
14
Gray Scale
Level
16384
Colors
Million
687
Color Temperature
Deg.K
3,200-9,300 Adjustable
Brightness Control
N/A
255
Contrast Ratio
N/A
4000:01:00
Viewing Angle H/V
Deg.
140/140
Operating Tem.
F/C
-4F ~ 140F/-20C ~ +60
Operating Humidity
RH
10% 85%
Lift time
Hour
100,000
Installation Type
N/A
Wall mounted
Control Mode
N/A
Video Sync
Video Effect
N/A
2K, 4K
