Curved/Cylindrical LED Screens
/// LED DIGITAL Screens
Capture Attention with Our

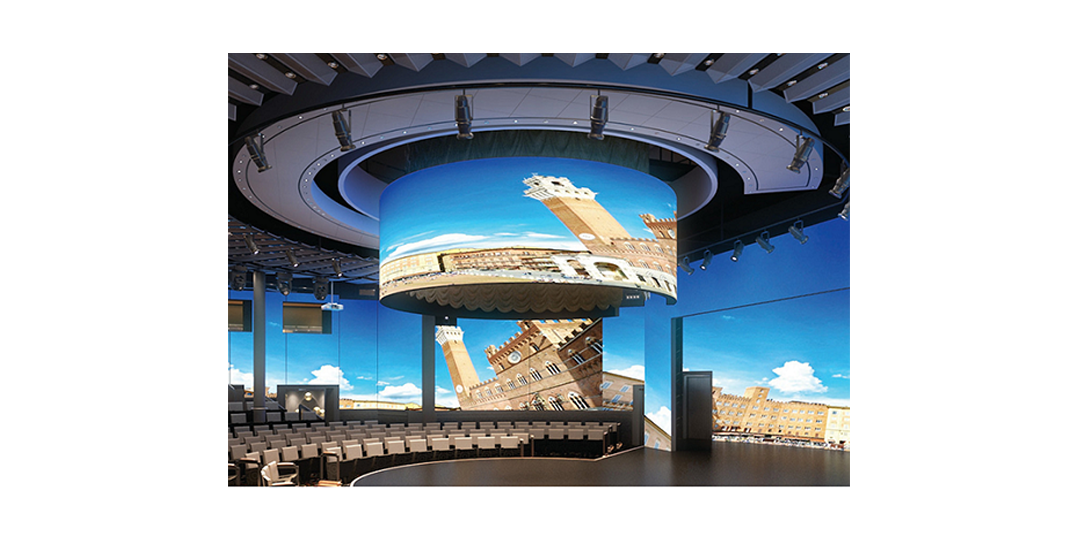

Curved and Cylindrical LED Screens
Take your visual displays to a whole new level with our Curved and Cylindrical LED Screens, designed to create a stunning, immersive experience that captivates your audience from every angle. Perfect for retail environments, exhibitions, lobbies, and unique installations, these screens provide a dynamic, eye-catching alternative to traditional flat displays.
Our Curved LED Screens offer a sleek, modern design that enhances your content by wrapping around corners or creating smooth, continuous visual displays. The gentle curvature provides a wider viewing angle, ensuring your message is seen from various perspectives, making it ideal for interactive experiences or brand storytelling. For even more creativity and innovation, our Cylindrical LED Screens bring an entirely new dimension to your display. These 360-degree displays can transform any environment into a truly immersive space, perfect for product launches, events, or high-traffic locations. The cylindrical design creates a wraparound visual effect that draws in audiences and creates a lasting impression.
Both our Curved and Cylindrical LED Screens are built with high-quality LED technology, offering vibrant colors, high brightness, and incredible resolution. With flexible, customizable setups, these screens can be tailored to fit your specific space and creative vision, delivering a visually stunning experience that goes beyond traditional displays. Whether you’re looking to create a striking focal point, engage your audience in a unique way, or showcase your brand in an innovative format, our Curved and Cylindrical LED Screens offer the perfect solution.
P 5
- LED Chip – Nationstar / Kinglight
- Lamp – SMD 3535 / 2727
- Driver IC – MBI 5153 / ICN 2038
- Refresh Rate – 3840 /1920 Hz
- Pixel Density – 40000 dots/m²
- Cabinet Size – 960 x 960 / 1280 x 960 / 1024 x 1024
- Cabinet Material – Steel
- Module Resolution – 64 x 32 / 8 x 64
- Gray Scale – 16 Bit
- Protection Level – IP 65
- Brightness – 5500 nits
- Viewing Distance – 5M – 100M
- Viewing Angle – 170 H / 120 V
- Power Supply – Mean well / G-Energy
- Control System – Novastar / Colorlight


P 6
- LED Chip – Nationstar / Kinglight
- Lamp – SMD 3535 / 2727
- Driver IC – MBI 5153 / ICN 2038
- Refresh Rate – 3840 /1920 Hz
- Pixel Density – 27777 dots/m²
- Cabinet Size – 960 x 960 / 1280 x 960 / 1024 x 1024
- Cabinet Material – Steel
- Module Size – 192mm x 192 mm
- Module Resolution – 32x 32
- Gray Scale – 16 Bit
- Protection Level – IP 65
- Brightness – 6000 nits
- Viewing Distance – 6M – 100M
- Viewing Angle – 170 H / 120 V
- Power Supply – Mean well / G-Energy
- Control System – Novastar / Colorlight
P 6.6
- LED Chip – Nationstar / Kinglight
- Lamp – SMD 3535 / 2727
- Driver IC – MBI 5153 / ICN 2038
- Refresh Rate – 3840 /1920 Hz
- Pixel Density – 22500 dots/m²
- Cabinet Size – 960 x 960 / 1280 x 960 / 1024 x 1024
- Cabinet Material – Steel
- Module Size – 320 mm x 320 mm
- Module Resolution – 48 x 48
- Gray Scale – 16 Bit
- Protection Level – IP 65
- Brightness – 6200 nits
- Viewing Distance – 6.6M – 100M
- Viewing Angle – 170 H / 120 V
- Power Supply – Mean well / G-Energy
- Control System – Novastar / Colorlight


P 8
- LED Chip – Nationstar / Kinglight
- Lamp – SMD 3535 / 2727
- Driver IC – MBI 5153 / ICN 2038
- Refresh Rate – 3840 /1920 Hz
- Pixel Density – 15625 dots/m²
- Cabinet Size – 960 x 960 / 1280 x 960 / 1024 x 1024
- Cabinet Material – Steel
- Module Size – 320 mm x 320 mm
- Module Resolution – 40 x 40
- Gray Scale – 16 Bit
- Protection Level – IP 65
- Brightness -6500 nits
- Viewing Distance – 8M – 100M
- Viewing Angle – 170 H / 120 V
- Power Supply – Mean well / G-Energy
- Control System – Novastar / Colorlight
P 10
- LED Chip – Nationstar / Kinglight
- Lamp – SMD 3535 / 2727
- Driver IC – MBI 5153 / ICN 2038
- Refresh Rate – 3840 /1920 Hz
- Pixel Density – 10000 dots/m²
- Cabinet Size – 960 x 960 / 1280 x 960 / 1024 x 1024
- Cabinet Material – Steel
- Module Size – 320 mm x 320 mm
- Module Resolution – 32x 32
- Gray Scale – 16 Bit
- Protection Level – IP 65
- Brightness – 7000 nits
- Viewing Distance – 10M – 100M
- Viewing Angle – 170 H / 120 V
- Power Supply – Mean well / G-Energy
- Control System – Novastar / Colorlight
